When people talk about resources in the Internet context, they usually mean link bandwidth and router buffers. To keep the discussion concrete and focused, however, we shall assume that the word resource is synonymous with bandwidth. For our pedagogic purposes, RSVP stands for bandwidth reservation protocol.

6.8.1: The Essence of RSVP

1. It provides reservations for bandwidth in multicast trees (unicast is handled as a degenerate case of multicast).
2. It is receiver-oriented, that is, the receiver of a data flow initiates and maintains the resource reservation used for that flow.

Before discussing RSVP in greater detail, we need to consider the notion of a session. As with RTP, a session can consist of multiple multicast data flows. Each sender in a session is the source of one or more data flows; for example, a sender might be the source of a video data flow and an audio data flow. Each data flow in a session has the same multicast address. To keep the discussion concrete, we assume that routers and hosts identify the session to which a packet belongs by the packet's multicast address. This assumption is somewhat restrictive; the actual RSVP specification allows for more general methods to identify a session. Within a session, the data flow to which a packet belongs also needs to be identified. This could be done, for example, with the flow identifier field in IPv6.

What RSVP Is Not

We emphasize that the RSVP standard [RFC 2205] does not specify how the network provides the reserved bandwidth to the data flows. It is merely a protocol that allows the applications to reserve the necessary link bandwidth. Once the reservations are in place, it is up to the routers in the Internet to actually provide the reserved bandwidth to the data flows. This provisioning would likely be done with the scheduling mechanisms (priority scheduling, weighted fair queuing, etc.) discussed in Section 6.6.

It is also important to understand that RSVP is not a routing protocol--it does not determine the links in which the reservations are to be made. Instead it depends on an underlying routing protocol (unicast or multicast) to determine the routes for the flows. Once the routes are in place, RSVP can reserve bandwidth in the links along these routes. (We shall see shortly that when a route changes, RSVP re-reserves resources.) Once the reservations are in place, the routers' packet schedulers must actually provide the reserved bandwidth to the data flows. Thus, RSVP is only one piece--albeit an important piece--in the QoS guarantee puzzle.

RSVP is sometimes referred to as a signaling protocol. By this it is meant that RSVP is a protocol that allows hosts to establish and tear down reservations for data flows. The term "signaling protocol" comes from the jargon of the circuit-switched telephony community.

Heterogeneous Receivers

Some receivers can receive a flow at 28.8 Kbps, others at 128 Kbps, and yet others at 10 Mbps or higher. This heterogeneity of the receivers poses an interesting question. If a sender is multicasting a video to a group of heterogeneous receivers, should the sender encode the video for low quality at 28.8 Kbps, for medium quality at 128 Kbps, or for high quality at 10 Mbps? If the video is encoded at 10 Mbps, then only the users with 10 Mbps access will be able to watch the video. On the other hand, if the video is encoded at 28.8 Kbps, then the 10 Mbps users will have to see a low-quality image when they know they can see something much better.

To resolve this dilemma it is often suggested that video and audio be encoded in layers. For example, a video might be encoded into two layers: a base layer and an enhancement layer. The base layer could have a rate of 20 Kbps whereas the enhancement layer could have a rate of 100 Kbps; in this manner receivers with 28.8 Kbps access could receive the low-quality base-layer image, and receivers with 128 Kbps could receive both layers to construct a high-quality image.

We note that the sender does not need to know the receiving rates of all the receivers. It only needs to know the maximum rate of all its receivers. The sender encodes the video or audio into multiple layers and sends all the layers up to the maximum rate into multicast tree. The receivers pick out the layers that are appropriate for their receiving rates. In order to not excessively waste bandwidth in the network's links, the heterogeneous receivers must communicate to the network the rates they can handle. We shall see that RSVP gives foremost attention to the issue of reserving resources for heterogeneous receivers.

6.8.2: A Few Simple Examples

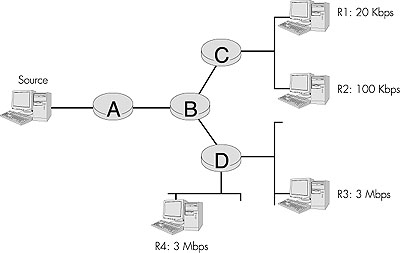

Crudely speaking, RSVP operates as follows for this example. Each receiver sends a reservation message upstream into the multicast tree. This reservation message specifies the rate at which the receiver would like to receive the data from the source. When the reservation message reaches a router, the router adjusts its packet scheduler to accommodate the reservation. It then sends a reservation upstream. The amount of bandwidth reserved upstream from the router depends on the bandwidths reserved downstream. In the example in Figure 6.34, receivers R1, R2, R3, and R4 reserve 20 Kbps, 100 Kbps, 3 Mbps, and 3 Mbps, respectively. Thus router D's downstream receivers request a maximum of 3 Mbps. For this one-to-many transmission, Router D sends a reservation message to Router B requesting that Router B reserve 3 Mbps on the link between the two routers. Note that only 3 Mbps are reserved and not 3+3=6 Mbps; this is because receivers R3 and R4 are watching the same sporting event, so their reservations may be merged. Similarly, Router C requests that Router B reserve 100 Kbps on the link between routers B and C; the layered encoding ensures that receiver R1's 20 Kbps stream is included in the 100 Kbps stream. Once Router B receives the reservation message from its downstream routers and passes the reservations to its schedulers, it sends a new reservation message to its upstream router, Router A. This message reserves 3 Mbps of bandwidth on the link from Router A to Router B, which is again the maximum of the downstream reservations.

We see from this first example that RSVP is receiver-oriented, that is, the receiver of a data flow initiates and maintains the resource reservation used for that flow. Note that each router receives a reservation message from each of its downstream links in the multicast tree and sends only one reservation message into its upstream link.

As another example, suppose that four persons are participating in a video conference, as shown in Figure 6.35. Each person has three windows open on her computer to look at the other three persons. Suppose that the underlying routing protocol has established the multicast tree among the four hosts as shown in the diagram below. Finally, suppose each person wants to see each of the videos at 3 Mbps. Then on each of the links in this multicast tree, RSVP would reserve 9 Mbps in one direction and 3 Mbps in the other direction. Note that RSVP does not merge reservations in this example, as each person wants to receive three distinct streams.

Now consider an audio conference among the same four persons over the same multicast tree. Suppose b bps are needed for an isolated audio stream. Because in an audio conference it is rare that more than two persons speak at the same time, it is not necessary to reserve 3 · b bps into each receiver; 2 · b should suffice. Thus, in this last application we can conserve bandwidth by merging reservations.

Call Admission

Just as the manager of a restaurant should not accept reservations for more tables than the restaurant has, the amount of bandwidth on a link that a router reserves should not exceed the link's capacity. Thus whenever a router receives a new reservation message, it must first determine if its downstream links on the multicast tree can accommodate the reservation. This admission test is performed whenever a router receives a reservation message. If the admission test fails, the router rejects the reservation and returns an error message to the appropriate receiver(s).

RSVP does not define the admission test, but it assumes that the routers perform such a test and that RSVP can interact with the test.

6.8.3: Path Messages

The principal purpose of the path messages is to let the routers know the links on which they should forward the reservation messages. Specifically, a path message sent within the multicast tree from a Router A to a Router B contains Router A's unicast IP address. Router B puts this address in a path-state table, and when it receives a reservation message from a downstream node it accesses the table and learns that it should send a reservation message up the multicast tree to Router A. In the future some routing protocols may supply reverse path forwarding information directly, replacing the reverse-routing function of the path state.

Along with some other information, the path messages also contain a sender Tspec, which defines the traffic characteristics of the data stream that the sender will generate (see Section 6.7). This Tspec can be used to prevent over-reservation.

6.8.4: Reservation Styles

There are currently three reservation styles defined: wildcard-filter style, fixed-filter style, and shared-explicit style.

• Wildcard-filter style. When a receiver uses the wildcard-filter style in its reservation message, it is telling the network that it wants to receive all flows from all upstream senders in the session and that its bandwidth reservation is to be shared among the senders.
• Fixed-filter style. When a receiver uses the fixed-filter style in its reservation message, it specifies a list of senders from which it wants to receive a data flow along with a bandwidth reservation for each of these senders. These reservations are distinct, that is, they are not to be shared.
• Shared-explicit style. When a receiver uses the shared-explicit style in its reservation message, it specifies a list of senders from which it wants to receive a data flow along with a single bandwidth reservation. This reservation is to be shared among all the senders in the list.

Examples of Reservation Styles

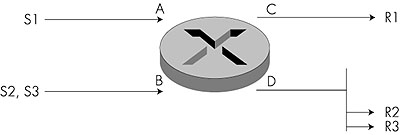

Following the RSVP Internet RFC, let's next consider a few examples of the three reservation styles. In Figure 6.36, a router has two incoming interfaces, labeled A and B, and two outgoing interfaces, labeled C and D. The many-to-many multicast session has three senders--S1, S2, and S3--and three receivers--R1, R2, and R3. Figure 6.36 also shows that interface D is connected to a LAN.

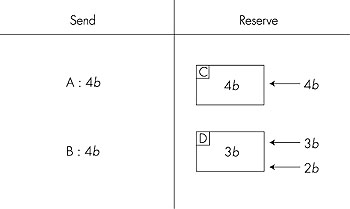

Suppose first that all of the receivers use the wildcard-filter reservation. As shown in the Figure 6.37, receivers R1, R2, and R3 want to reserve 4b, 3b, and 2b, respectively, where b is a given bit rate. In this case, the router reserves 4b on interface C and 3b on interface D. Because of the wildcard-filter reservation, the two reservations from R2 and R3 are merged for interface D. The larger of the two reservations is used rather than the sum of reservations. The router then sends a reservation message upstream to interface A and another to interface B; each of these reservation message requests is 4b, which is the larger of 3b and 4b.

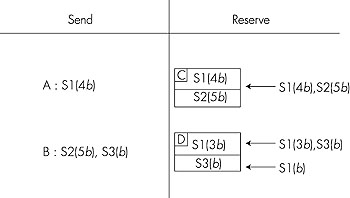

Now suppose that all of the receivers use the fixed-filter reservation. As shown in Figure 6.38, receiver R1 wants to reserve 4b for source S1 and 5b for source S2; also shown in the figure are the reservation requests from R2 and R3. Because of the fixed-filter style, the router reserves two disjoint chunks of bandwidth on interface C: one chunk of 4b for S1 and another chunk of 5b for S2. Similarly, the router reserves two disjoint chunks of bandwidth on interface D: one chunk of 3b for S1 (the maximum of b and 3b) and one chunk of b for S3. On interface A, the router sends a message with a reservation for S1 of 4b (the maximum of 3b and 4b). On interface B, the router sends a message with a reservation of 5b for S2 and b for S3.

Finally, suppose that each of the receivers use the shared-explicit reservation. As shown in Figure 6.39, receiver R1 desires a pipe of 1b, which is to be shared between sources S1 and S2; receiver R2 desires a pipe of 3b to be shared between sources S1 and S3; and receiver R3 wants a pipe of 2b for source S2. Because of the shared-explicit style, the reservations from R2 and R3 are merged for interface D. Only one pipe is reserved on interface D, although it is reserved at the maximum of the reservation rates. RSVP will reserve on interface B a pipe of 3b to be shared by S2 and S3; note that 3b is the maximum of the downstream reservations for S2 and S3.

In each of the above examples the three receivers used the same reservation style. Because receivers make independent decisions, the receivers participating in a session could use different styles. RSVP does not permit, however, reservations of different styles to be merged.

The Principle of Soft State The reservations in the routers and hosts are maintained with soft states. By this it is meant that each reservation for bandwidth stored in a router has an associated timer. If a reservation's timer expires, then the reservation is removed. If a receiver desires to maintain a reservation, it must periodically refresh the reservation by sending reservation messages. This soft-state principle is also used by other protocols in computer networking. As we learned in Chapter 5, for the routing tables in transparent bridges, the entries are refreshed by data packets that arrive to the bridge; entries that are not refreshed are timed-out. On the other hand, if a protocol takes explicit actions to modify or release state, then the protocol makes use of hard state. Hard state is employed in virtual circuit networks (VC), in which explicit actions must be taken to adjust VC tables in switching nodes to establish and tear down VCs.

6.8.5: Transport of Reservation Messages

An RSVP reservation message that originates in a host will have the host's IP address in the source address field of the encapsulating IP datagram. It will have the IP address of the first router along the reserve path in the multicast tree in the destination address in the encapsulating IP datagram. When the IP datagram arrives at the first router, the router strips off the IP fields and passes the reservation message to the router's RSVP module. The RSVP module examines the message's multicast address (that is, session identifier) and style type, examines its current state, and then acts appropriately; for example, the RSVP module may merge the reservation with a reservation originating from another interface and then send a new reservation message to the next router upstream in the multicast tree.

Insufficient Resource

Because a reservation request that fails an admission test may embody a number of requests merged together, a reservation error must be reported to all the concerned receivers. These reservation errors are reported within ResvError messages. The receivers can then reduce the amount of resource that they request and try reserving again. The RSVP standard provides mechanisms to allow the backtracking of the reservations when insufficient resources are available; unfortunately, these mechanisms add significant complexity to the RSVP protocol. Furthermore, RSVP suffers from the so-called killer-reservation problem, whereby a receiver requests a large reservation over and over again, each time getting its reservation rejected due to lack of sufficient resources. Because this large reservation may have been merged with smaller reservations downstream, the large reservation may be excluding smaller reservations from being established. To solve this thorny problem, RSVP uses the ResvError messages to establish additional state in routers, called blockade state. Blockade state in a router modifies the merging procedure to omit the offending reservation from the merge, allowing a smaller request to be forwarded and established. The blockade state adds yet further complexity to the RSVP protocol and its implementation.
